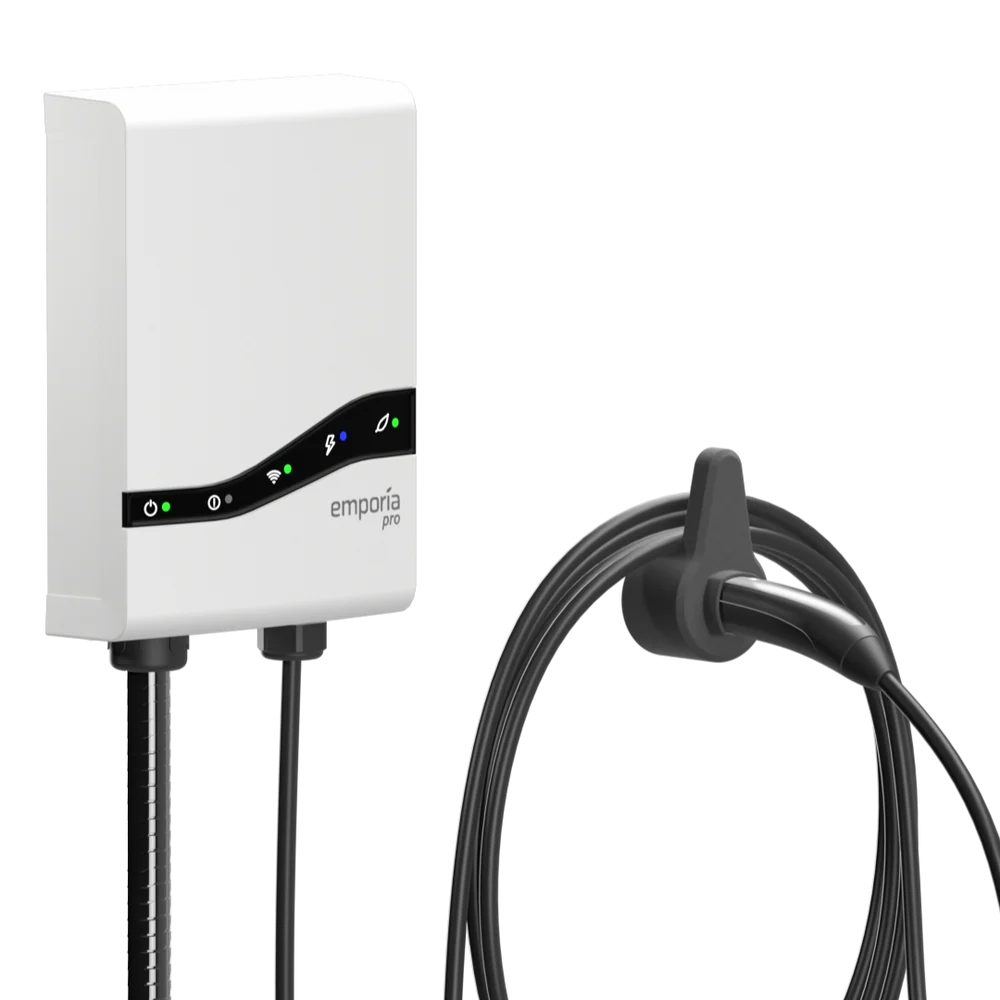

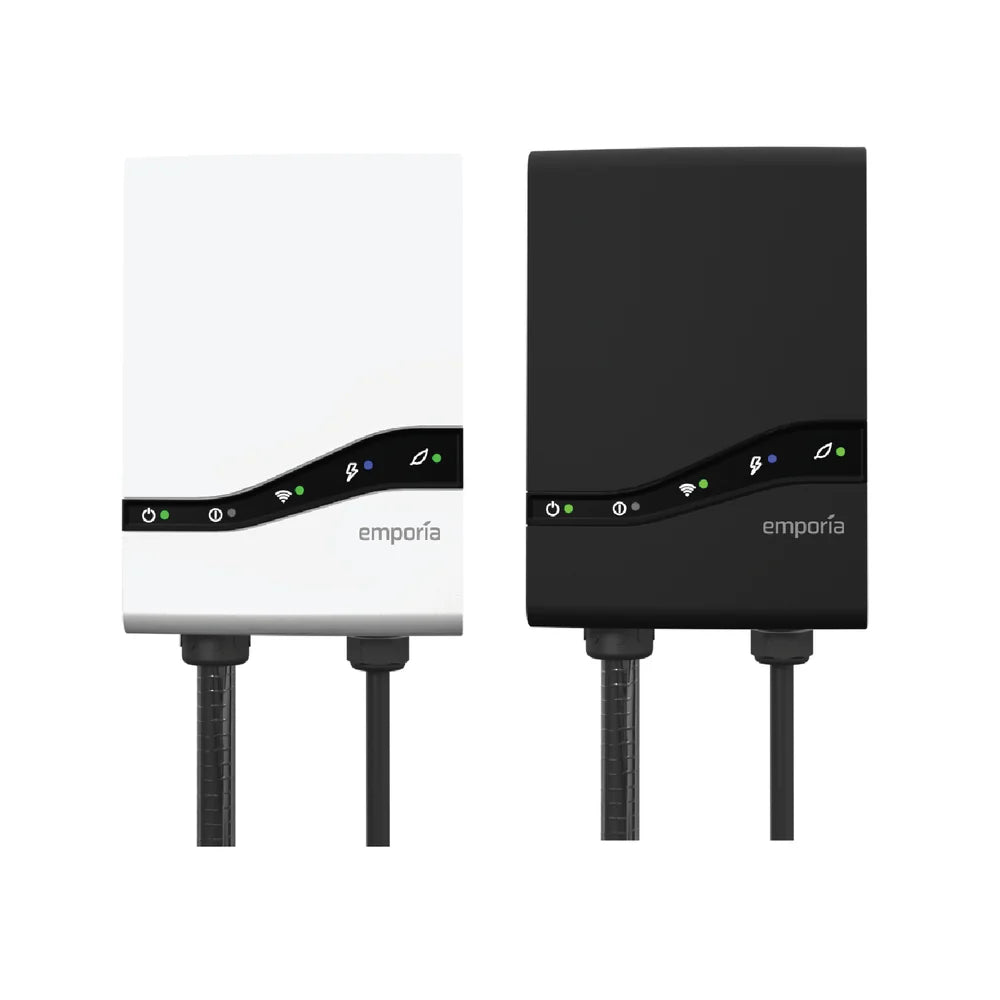

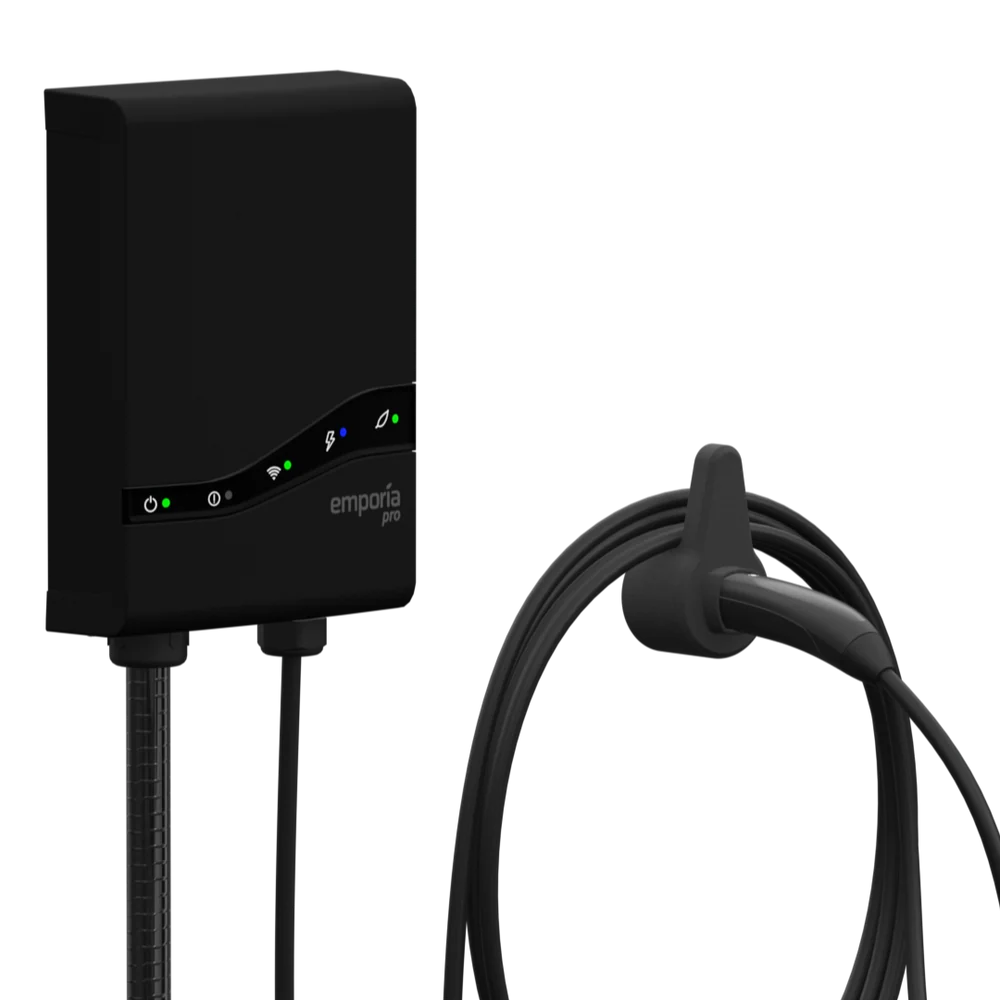

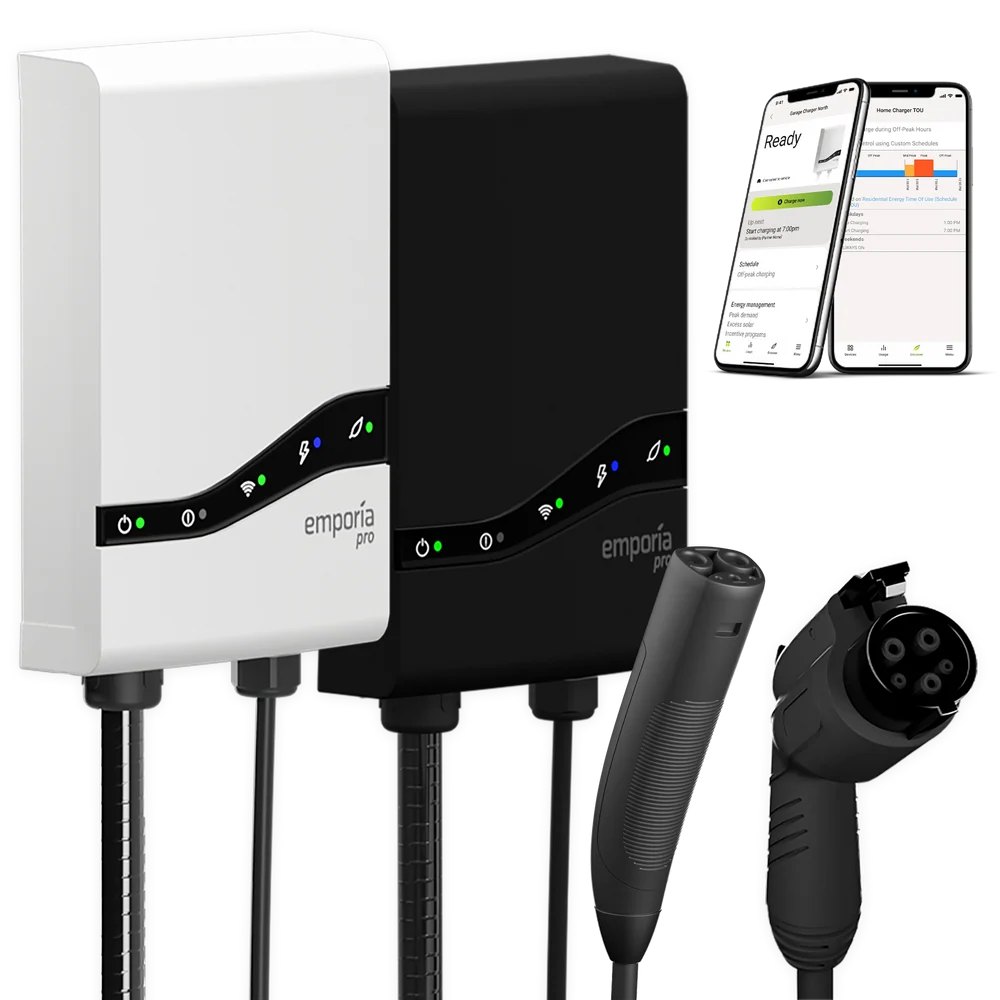

Emporia Pro Level 2 EV Charger - Black / CCS / J1772 / Hardwire

Upgrade your home EV charging experience with the Emporia Pro Level 2 EV Charger, a powerful and intelligent charging solution designed for fast, reliable, and energy-efficient electric vehicle charging. Delivering up to 48 amps and 11.5kW of charging power, the Emporia Pro provides fast Level 2 charging while intelligently managing your home's available electrical capacity.

Powered by Emporia's PowerSmart load management technology and paired with the included Vue 3 Home Energy Monitor, the Emporia Pro continuously monitors your home's electrical consumption and automatically adjusts EV charging to help prevent your electrical panel from being overloaded. This makes it an excellent choice for homes with limited electrical capacity that want powerful EV charging without necessarily requiring a costly panel upgrade.

Powerful Level 2 EV Charging

• Up to 48A Charging: Delivers up to 11.5kW of Level 2 charging power when hardwired to a properly sized 60A circuit.
• 240V Operation: Provides fast AC charging for compatible electric vehicles.
• 40A NEMA 14-50 Option: The NEMA 14-50 configuration supports charging up to 40A on a properly installed 50A circuit.
• 25-Foot Charging Cable: Provides extended reach for convenient vehicle charging.
• J1772 Connector: The selected configuration uses the SAE J1772 connector for broad compatibility with EVs and plug-in hybrid vehicles.

PowerSmart Dynamic Load Management

• Automatic Load Balancing: PowerSmart continuously monitors household energy consumption and adjusts the EV charging rate based on available electrical capacity.
• Helps Avoid Panel Upgrades: By intelligently managing available power, the system can help homes with limited electrical capacity support Level 2 EV charging.
• Real-Time Monitoring: The included Vue 3 Energy Monitor measures household electrical usage and provides data to the PowerSmart system.
• Automatic Adjustments: Charging power can automatically increase or decrease as other electrical loads in the home change.
• Built-In Energy Management: Provides a smarter approach to EV charging without requiring users to manually adjust charging levels throughout the day.

Smart Charging & Energy Management

• Scheduled Charging: Set charging schedules to take advantage of lower-cost utility periods.
• Time-of-Use Optimization: Schedule EV charging around utility rate structures to help manage charging costs.
• Charging Insights: Monitor charging activity and energy usage through the Emporia platform.
• Cost Tracking: View charging activity and associated energy consumption to better understand EV charging costs.
• Emporia App Integration: Connect the charger with the Emporia ecosystem for convenient monitoring and management.

Solar Energy Integration

• Solar Charging Support: Designed to integrate with Emporia's home energy management platform for intelligent solar-powered EV charging.
• Energy Visibility: The Vue 3 Energy Monitor provides real-time insight into household energy production and consumption.
• Smarter Energy Use: Helps homeowners better coordinate EV charging with available home energy resources.
• Home Energy Management: Works as part of the broader Emporia energy ecosystem for monitoring and managing household electricity.

Hardwired Installation

• Permanent Installation: The hardwired configuration provides a clean, permanent EV charging solution.
• Up to 48A: Hardwired installation allows the charger to deliver its maximum 48A charging capability when connected to an appropriately sized circuit.
• 60A+ Dedicated Breaker: A dedicated 60A or larger dual-pole breaker is required for 48A charging.
• Indoor or Outdoor Installation: The NEMA 4 watertight enclosure is designed for indoor and outdoor installation.
• Professional Installation Recommended: Installation should be completed by a qualified, licensed electrician according to local electrical codes.

Built for Safety & Reliability

• UL Certified: Designed and certified to applicable EV charging safety standards.
• Built-In GFCI Protection: The charger includes internal ground-fault protection for added safety.
• NEMA 4 Enclosure: Watertight housing provides protection for indoor and outdoor installations.
• Wide Operating Temperature: Designed to operate from -22°F to 122°F (-30°C to 50°C).
• Durable Construction: Built for dependable daily EV charging in residential environments.

Universal EV Compatibility

• SAE J1772 Connector: Compatible with most North American EVs and plug-in hybrid vehicles equipped with a J1772 charging inlet.
• CCS Compatibility: Vehicles equipped with CCS charging ports can use the J1772 AC charging connection for Level 2 charging.
• Wide EV Support: Designed to provide Level 2 AC charging across a broad range of compatible electric vehicles.
• 25-Foot Cable: Provides flexibility for vehicles parked at different positions relative to the charger.

Emporia Vue 3 Home Energy Monitor Included

• Vue 3 Energy Monitor: Included with the Emporia Pro to enable PowerSmart load management.
• 2 × 200A CT Sensors: Provides whole-home electrical monitoring.
• Real-Time Energy Data: Tracks household energy consumption and provides information to the Emporia platform.
• PowerSmart Integration: Supplies the real-time electrical information needed for automatic charging load management.

Technical Specifications Summary

What's Included

• 1 × Emporia Pro Level 2 EV Charger
• 1 × 25-Foot Charging Cable
• 1 × SAE J1772 Connector
• 1 × Emporia Vue 3 Home Energy Monitor
• 2 × 200A Current Transformer Sensors
• PowerSmart Load Management Software
• Mounting Hardware
• Hardwire Installation Conduit / Wiring Components

Ideal for Smart Home EV Charging

The Emporia Pro Level 2 EV Charger combines fast 48A charging with intelligent home energy management. With up to 11.5kW of charging power, PowerSmart dynamic load management, an included Vue 3 Energy Monitor, smart scheduling, and solar energy integration, it is designed for homeowners who want more control over their EV charging and household energy consumption.

The hardwired J1772 configuration is particularly suited for permanent installations where maximum 48A charging is desired. Its NEMA 4 enclosure allows for indoor or outdoor installation, while built-in safety features and UL certification provide additional confidence for everyday charging.

Important: Professional installation by a licensed electrician is strongly recommended. Electrical requirements vary by installation and local code. The hardwired configuration requires an appropriately sized dedicated circuit and breaker. Actual charging speed depends on the vehicle's onboard charger, available electrical capacity, installation configuration, and other operating conditions. The Emporia Pro is an AC Level 2 charger and is not a DC fast charger.
