Emporia Classic Level 2 EV Charger

Upgrade your home EV charging with the Emporia Classic Level 2 EV Charger, a fast, reliable, and affordable charging solution designed for everyday electric vehicle drivers. Delivering up to 48 amps of Level 2 charging power when hardwired, or up to 40 amps with the NEMA 14-50 configuration, the Emporia Classic provides convenient and dependable charging for compatible electric vehicles.

With built-in Wi-Fi connectivity, smart scheduling, energy monitoring, GFCI protection, and a durable weatherproof enclosure, the Emporia Classic makes it easy to control and monitor your EV charging from the Emporia mobile app. The included 25-foot charging cable provides plenty of reach for convenient garage or driveway installations.

Fast Level 2 EV Charging

• Up to 48A Charging: Provides up to 11.5kW of Level 2 charging power when hardwired to a properly sized circuit.
• 40A NEMA 14-50 Charging: The included NEMA 14-50 configuration supports up to 40A charging for convenient plug-in installation.
• 240V Operation: Delivers substantially faster charging than standard Level 1 charging for compatible EVs.
• 25-Foot Cable: Provides extended reach between the charger and vehicle.
• J1772 Connector: Designed for broad compatibility with North American electric vehicles and plug-in hybrids.

Smart Charging With the Emporia App

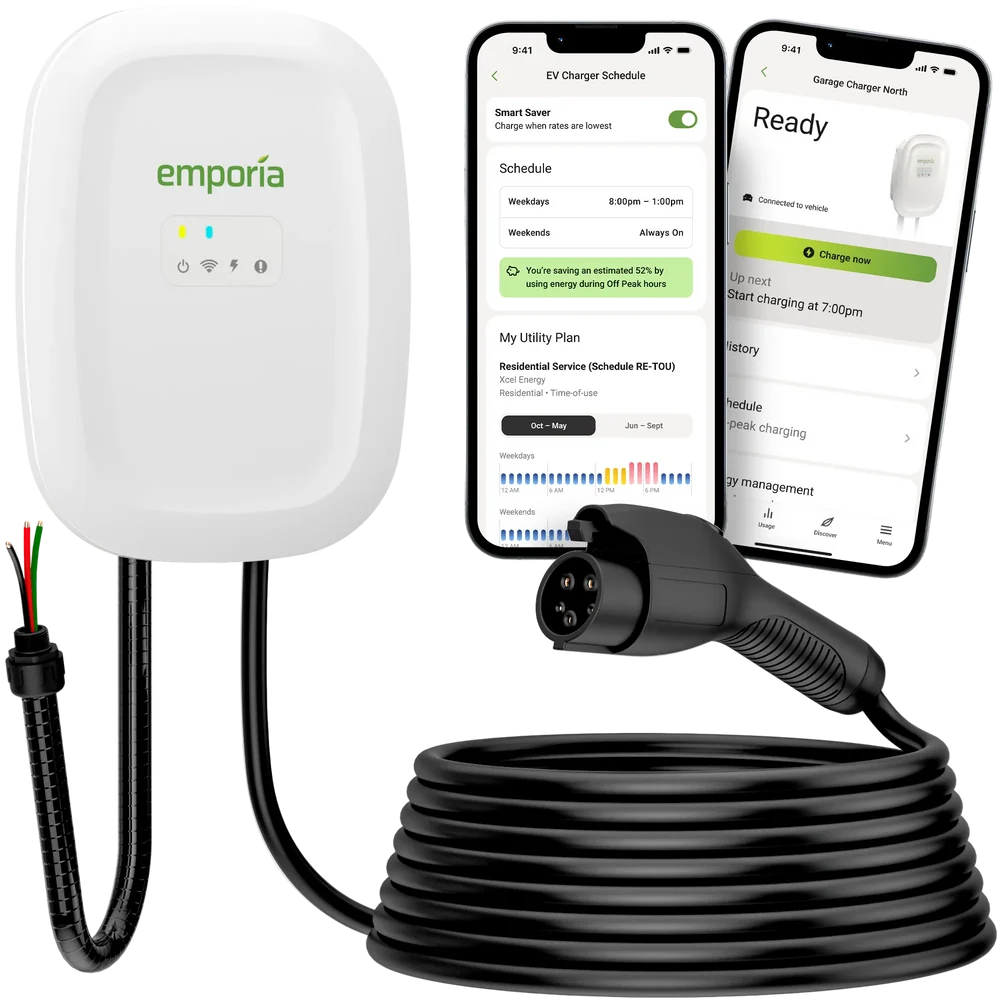

• Wi-Fi Connectivity: Connect the charger to your home network and manage supported charging functions through the Emporia app.
• Remote Monitoring: View charging status and energy consumption from your smartphone or compatible web browser.

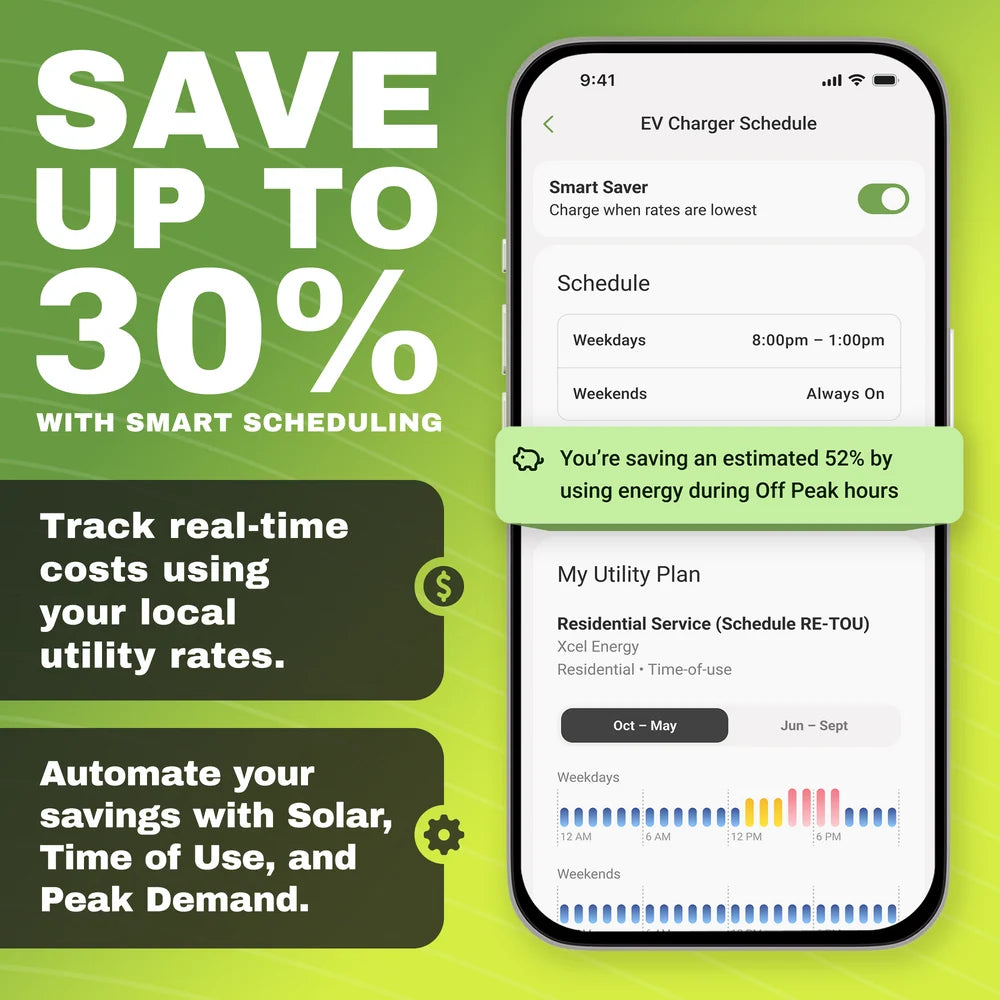

• Smart Scheduling: Schedule charging sessions around your daily routine or utility rate periods.
• Time-of-Use Optimization: Set charging schedules to take advantage of lower-cost electricity periods where available.
• Energy Insights: Track charging activity and visualize energy usage, costs, and savings over time.

Universal EV Compatibility

• SAE J1772 Connector: Compatible with most North American EVs and plug-in hybrid vehicles equipped with a J1772 charging inlet.
• CCS Compatibility: Vehicles equipped with CCS charging ports can use the J1772 AC connection for Level 2 charging.
• Wide Vehicle Compatibility: Designed for use with a broad range of electric vehicles and plug-in hybrids.
• Tesla Compatibility: Tesla vehicles with the appropriate J1772-compatible charging adapter can use the charger.

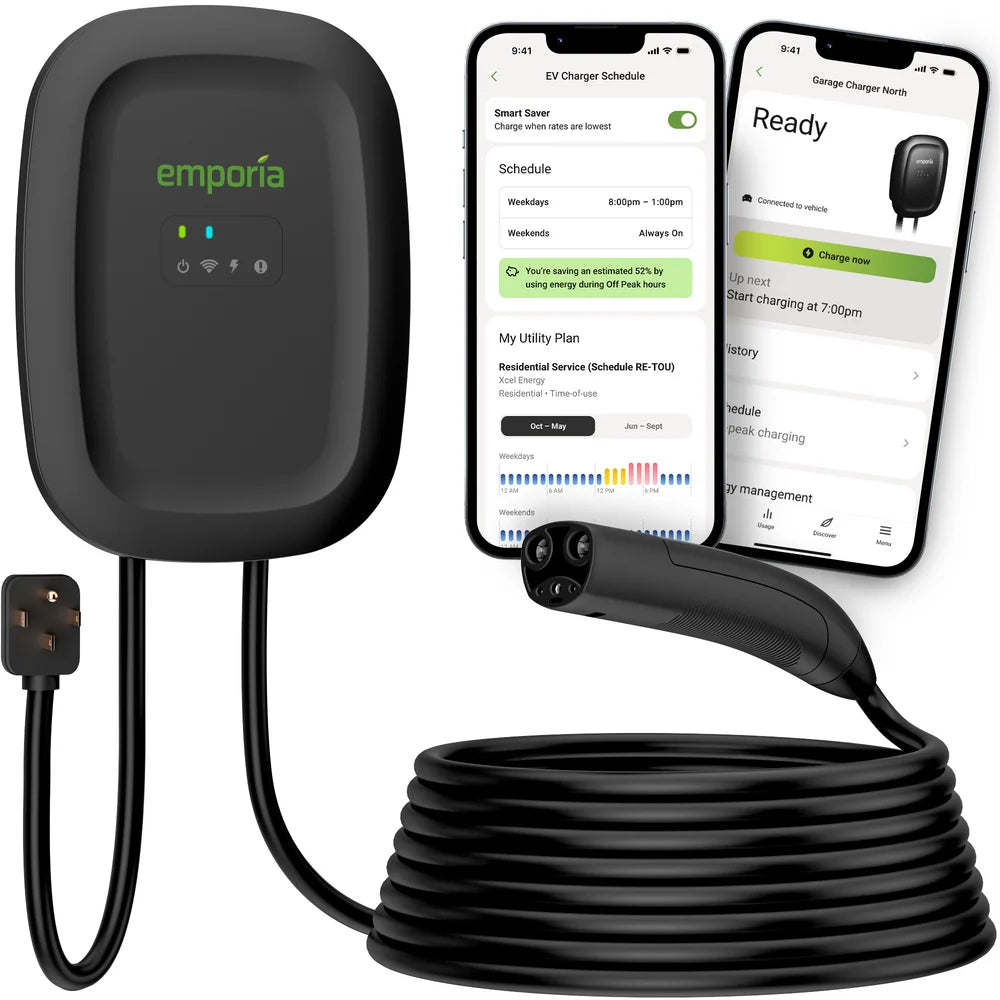

NEMA 14-50 Plug-In Installation

• Easy Plug-In Setup: The NEMA 14-50 configuration provides a convenient alternative to permanent hardwired installation.
• Up to 40A Charging: The NEMA configuration supports up to 40A charging, providing up to 9.6kW at 240V.
• Portable Installation: The plug-in configuration can be easier to relocate than a hardwired charger.
• Industrial-Grade Outlet Recommended: Emporia recommends using a 50A-rated, continuous-duty NEMA 14-50 receptacle designed for EV charging.
• Dedicated Circuit: A dedicated 50A+ dual-pole breaker is required for 40A charging.

Weatherproof Indoor & Outdoor Design

• NEMA Type 4 Enclosure: Watertight housing protects the charger for indoor and outdoor installations.
• Wide Temperature Range: Designed to operate from -22°F to 122°F (-30°C to 50°C).
• Durable Construction: Built to provide dependable charging in garages, driveways, carports, and other suitable locations.
• Built-In GFCI Protection: Provides integrated ground-fault protection for added charging safety.

Smart Energy Management

• Charging Cost Tracking: Monitor energy consumption and charging costs through the Emporia platform.
• Utility Rate Integration: Configure utility rates and schedules to better manage charging expenses.
• Automated Charging: Use scheduled charging to reduce the need for manual charging management.
• Energy Monitoring: Easily review charging activity over days, weeks, and months.
• Solar Integration Options: The Emporia ecosystem can be paired with compatible energy monitoring equipment for expanded home energy management.

Safe & Reliable Charging

• UL Certified: Designed to meet applicable EV charging safety standards.
• Built-In GFCI: Integrated ground-fault protection helps protect users and equipment.
• SAE J1772 Compliant: Uses the established J1772 charging standard for compatible EVs.
• NEC 625 Compliance: Designed in accordance with applicable electric vehicle charging system requirements.
• 3-Year Warranty: Backed by Emporia's limited three-year warranty when installed according to applicable requirements.

Technical Specifications Summary

What's Included

• 1 × Emporia Classic Level 2 EV Charger
• 1 × 25-Foot Charging Cable
• 1 × SAE J1772 Charging Connector
• 1 × NEMA 14-50 Plug
• 1 × Charger Wall Mount
• 1 × Charging Handle Holder
• Mounting Hardware

Ideal for Everyday Home EV Charging

The Emporia Classic Level 2 EV Charger provides a powerful combination of fast charging, smart controls, and reliable construction at an accessible price. With up to 11.5kW of maximum charging power, 40A NEMA 14-50 charging, Wi-Fi connectivity, smart scheduling, built-in GFCI protection, and a durable NEMA Type 4 enclosure, it is an excellent choice for everyday residential EV charging.

The White / CCS-J1772 / NEMA 14-50 configuration is especially convenient for homeowners who want a plug-in Level 2 charger rather than a permanent hardwired installation. The 25-foot cable provides generous reach, while the Emporia app makes it easy to monitor charging sessions, energy consumption, and charging costs.

Important: The NEMA 14-50 configuration supports up to 40A charging. A dedicated 50A+ dual-pole circuit is required for 40A continuous charging. Emporia recommends an industrial-grade, 50A-rated, continuous-duty NEMA 14-50 receptacle designed for EV charging rather than a standard residential outlet. Professional installation by a licensed electrician is strongly recommended. Actual charging speed depends on the vehicle's onboard charger, electrical installation, available power, and other operating conditions. This is an AC Level 2 charger and is not a DC fast charger.
